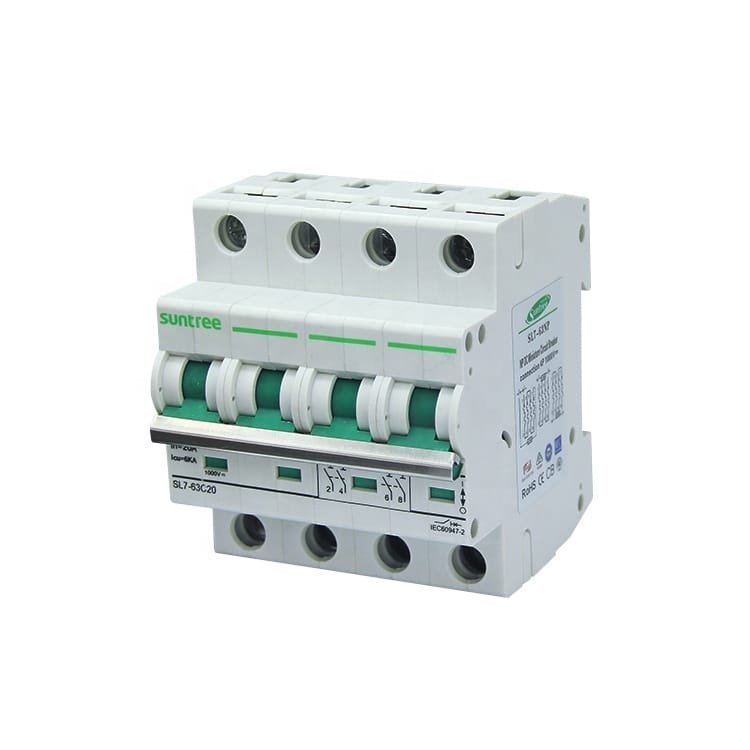

SUNTREE DC Circuit Breaker 4P 1000VDC for solar and dc installations
SUNTREE DC Circuit Breaker 4P 1000VDC for solar and dc installations - Image 2
SUNTREE DC Circuit Breaker 4P 1000VDC for solar and dc installations - Image 3
SUNTREE DC Circuit Breaker 4P 1000VDC for solar and dc installations - Image 4
,

SUNTREE DC Circuit Breaker 4P 1000VDC for solar and dc installations

SUNTREE
Compare

SUNTREE DC Circuit Breaker 4 Pole 1000 VDC

850,00 EGP

Compare

Short circuit protection, overload protection

  • High breaking capacity, up to 6kA
  • No positive and negative poles, can be reversed, easy to connect
  • Rated working current to 63A
  • Opening distance>9mm, quickly cut off the arc
  • Labyrinth arc interrupter
  • U-shaped magnetic blowing structure, improve the ability of disaster arc
  • 7 rivets ensure wiring reliability
  • Busbar design, reliable and beautiful wiring
  • Unique shape design
  • DC products with complete accessories, photovoltaic and energy storage systems
SKU: N/A Categories: , Tags: , , Brand:
Weight0,45 g
Dimensions10 × 10 × 10 cm
brands

SUNTREE

Rating

16A, 20A, 25A, 32A, 40A, 50A, 63A

No. Of Poles

2 Pole, 4 Pole

SL7N-63
Rated insulation voltage (Ui)1250V
Rated service voltage (Ue)DC(1P):15V,60V,100V,180V,250V; DC(2P):125V,375V,550V,600V,800V
DC(3P):750V,800V; DC(4P):800V,1000V 1200V
Rated current of current shell frame63A
Different currents In the same current shell frame6A、10A、 16A、 20A、 25A、32A、 40A、 50A、 63A
Rated service short-circuit breaking capacity Ics=Iculcs=Icu=6kA(2P800V/4P1200V Ics=Icu=2KA)
Mechanical life8500 Times
Electrical life1500 Times (< DC125V/1P, < DC250V/2P)
1000 times (other voltage specifications)
Crtificate
Rated impulse withstand voltage Uimp6kV
Trip characteristics I trip typeB/C
Overvoltage categoryⅢ
Class of pollution3
Ingress protectionIP40; terminal IP20
Resistance to heat and humidityClass 2
Relative humidity≤95%
Standards compliantIEC 60947-2 GB/T 14048.2
Shock resistanceAccording to IEC60068-2-6
Mechanical shock resistance parametersAccording to IEC60068-2-27
Service ambient temperature-30℃~70℃
IEC60068-4Resistance to heat and humidity(IEC60068-4)Class Db (temperature 55℃ 6 cycles)
Storage ambient temperature-40℃~85℃
Altitude≤2000m
Weight accessories0.12kg/P
AccessoriesOFISD/MX/MN/MX+OF
MX control voltage UsDC:12V,24V,220V; AC:110V,220V,380V power supply recommended not less than 75W
MN rated voltage UnAC220V AC380V
